Non-inverting amplifier (CB20658E)

Details
Written by: Newton C. Braga

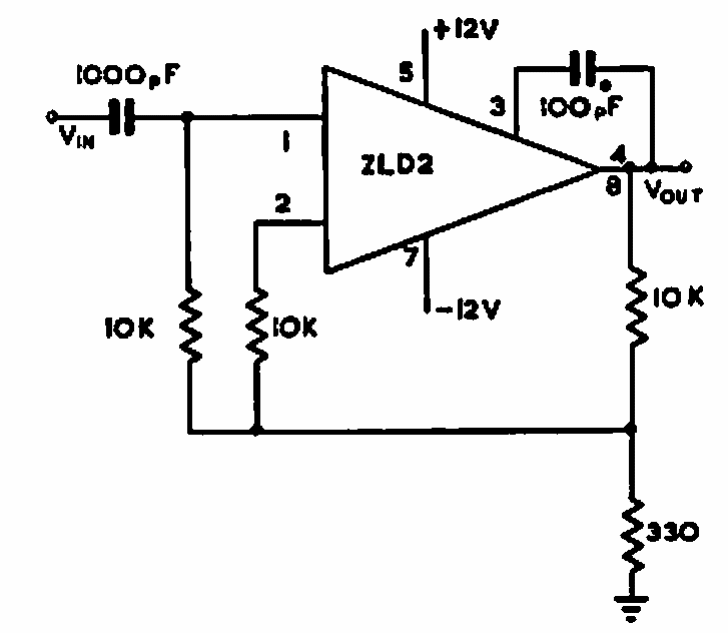

This high impedance circuit was found in 1967 documentation by Ferranti. The original operational amplifier is from that time. The circuit can be implemented with modern equivalents.






| Clique na imagem para ampliar |
