Complementary Dimmer (CB20708E)

Details
Written by: Newton C. Braga

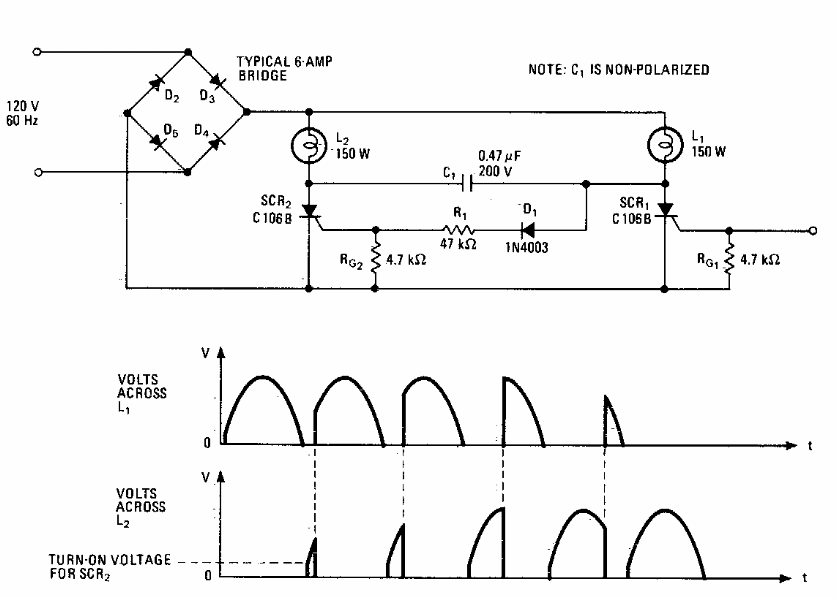

With this circuit, using a single control voltage, you can increase the brightness of the lamp while the brightness of another decreases. The circuit applies only to incandescent lamps.
