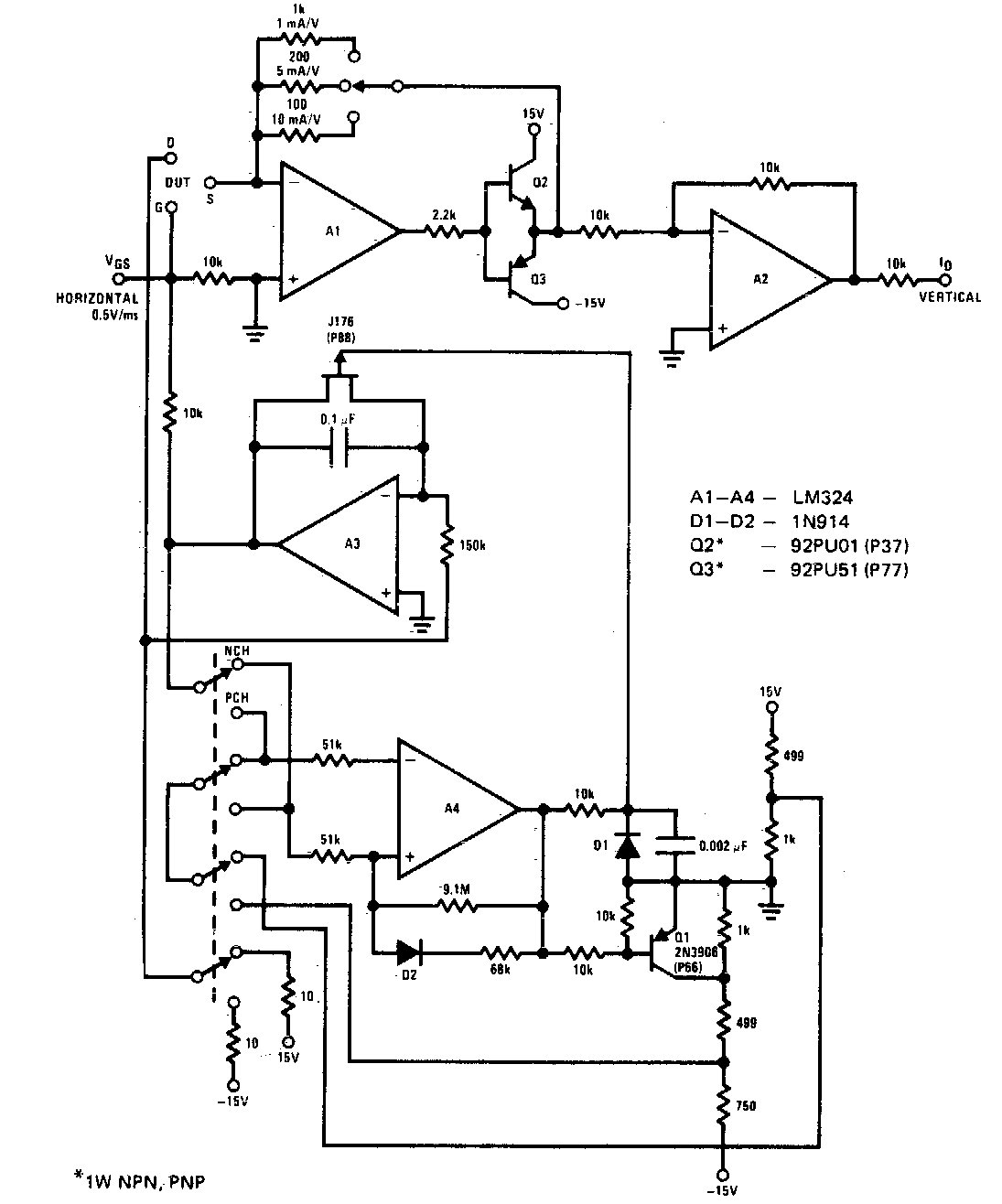

FET caracteristic curve plotter (CB20730E)

Details
Written by: Newton C. Braga



Found in American documentation from the 90s, this circuit uses components that are still common today. The 15 V power supply must be symmetrical.
