Bidirectional DC motor control (CB20786E)

Details
Written by: Newton C. Braga

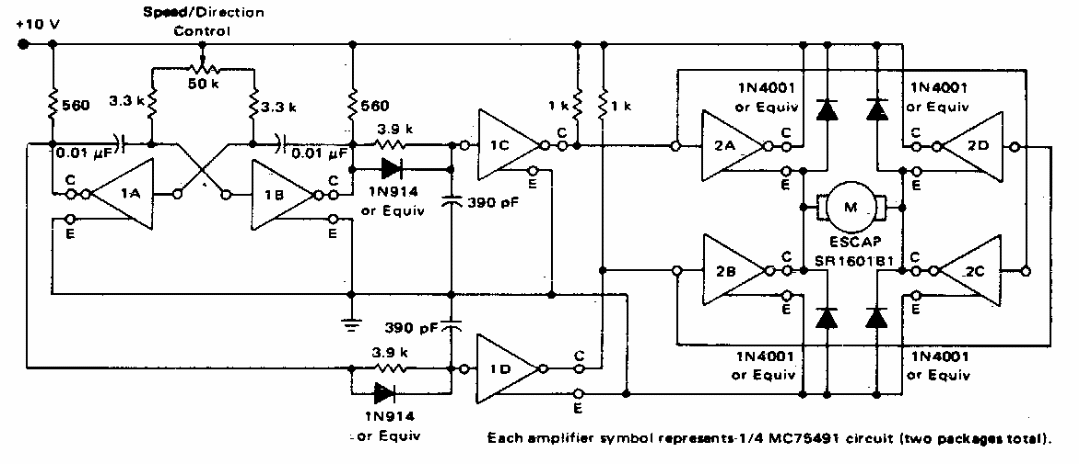

This circuit was found in old documentation, but it can be designed based on modern equivalent components, including the H bridge with operational ones.
