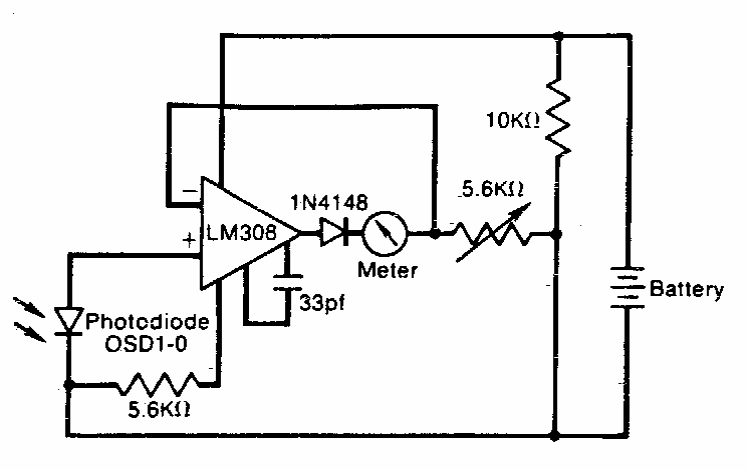

Logarithmic photometer (CB20722E)

Details
Written by: Newton C. Braga



The indicator for this circuit is a 0 to 1 mA milliammeter. The operational is from the 70s, when the circuit was published. Modern equivalent can be used.
