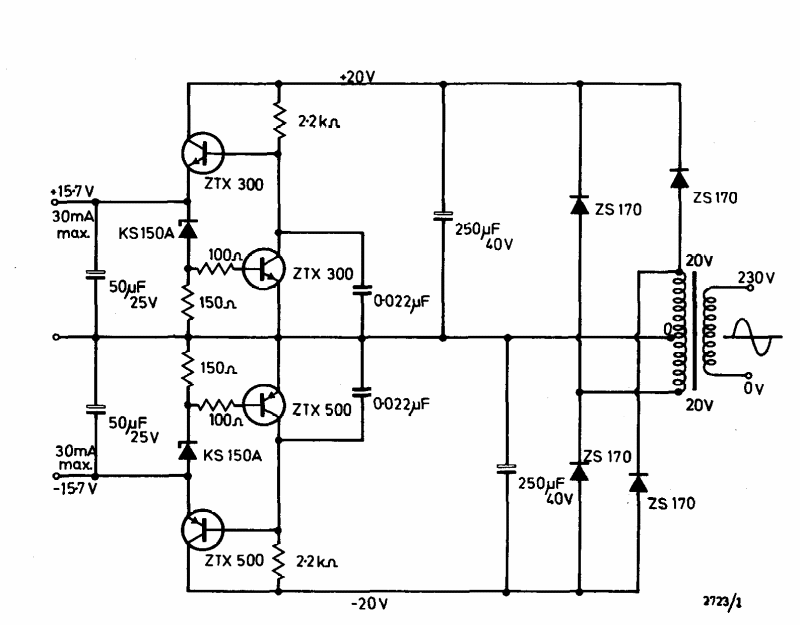

This symmetric 30 mA x 15 V power supply was found in the Ferranti transistor manual from 1974. Transistors are common types at the time.
| Clique na imagem para ampliar |
Power Supply for operational (CB21854E)
- Details
- Written by: Newton C. Braga
This symmetric 30 mA x 15 V power supply was found in the Ferranti transistor manual from 1974. Transistors are common types at the time.
