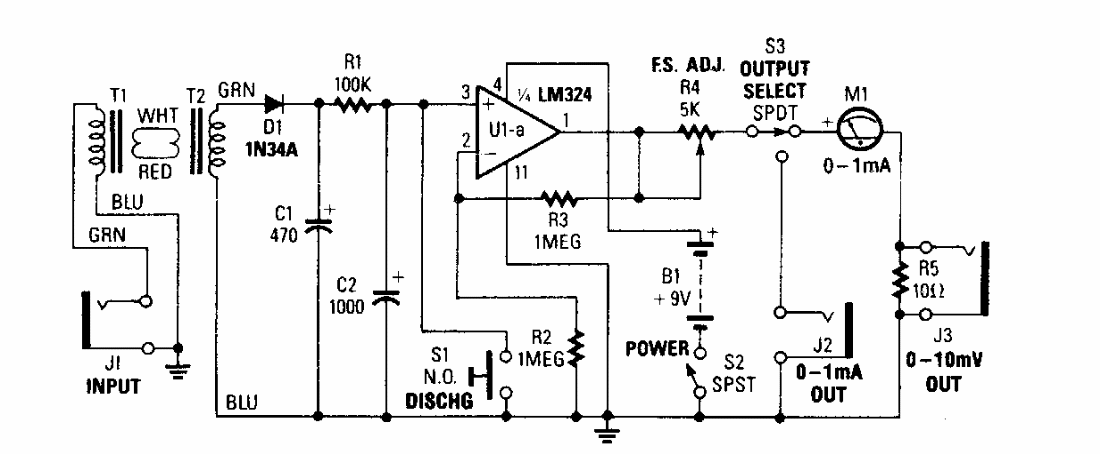

This circuit uses an MW radio tuned to around 540 kHz to detect atmospheric signals, for example, from an approaching storm. The circuit was taken from a Popular Electronics from the 90s.
| Clique na imagem para ampliar |
Atmospheric noise monitor (CB21066E)
- Details
- Written by: Newton C. Braga
