VHF Preamplifier (CB21209E)

Details
Written by: Newton C. Braga

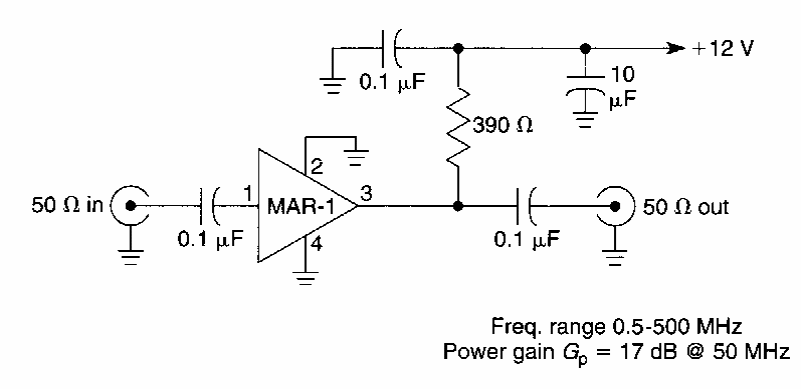

This circuit for receivers was found in an American documentation from the 90's. The circuit operates at up to 500 MHz. The integrated circuit used is uncommon nowadays.
