600W heating control (CB21383E)

Details
Written by: Newton C. Braga

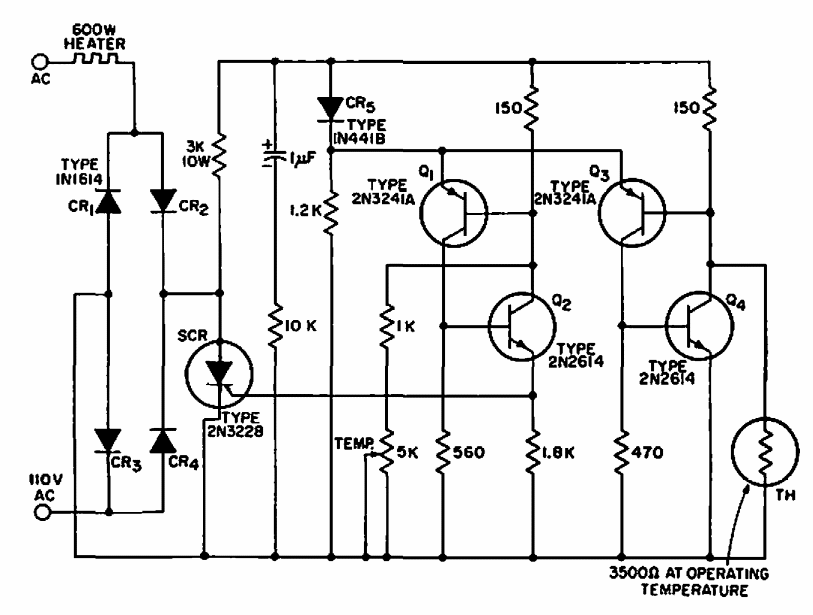

Found in old American documentation, this circuit is intended for the control of heating elements. The SCR must have current according to the controlled load. Transistors are from the time.




| Clique na imagem para ampliar |
