Voltage to Frequency Converter (CB21492E)

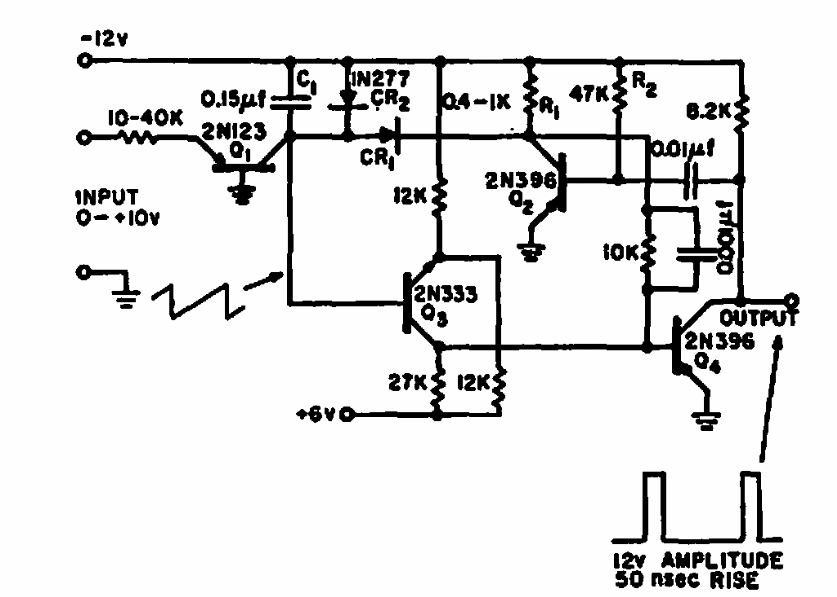

This circuit produces a 300 Hz signal from a 10V input. The circuit is from a 60's documentation, making use of components from the time.

| Clique na imagem para ampliar |

Sample and Hold LM3900 (CB14218E)
The circuit shown is suggested by National Semiconductor's Linear Applications Handbook. The base...
Telephone amplifier (CB8630E)
This circuit uses a pickup coil to take the signal from a telephone line without contacts. The circuit...
Opto and Strobe Interface (CB16037E)
In this circuit, the transistors are NPN for general use and the phototransistors can be replaced by...
