Protection for 3-terminal regulator (CB21163E)

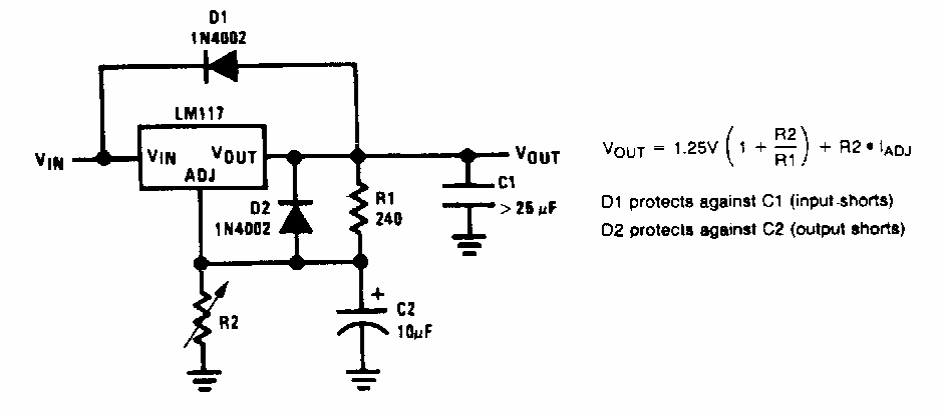

This circuit was found in documentation from National Semiconductor. The formula next to the diagram allows you to calculate the components used.

| Clique na imagem para ampliar |
