1-minute delay with Triac (CB21406E)

Details
Written by: Newton C. Braga

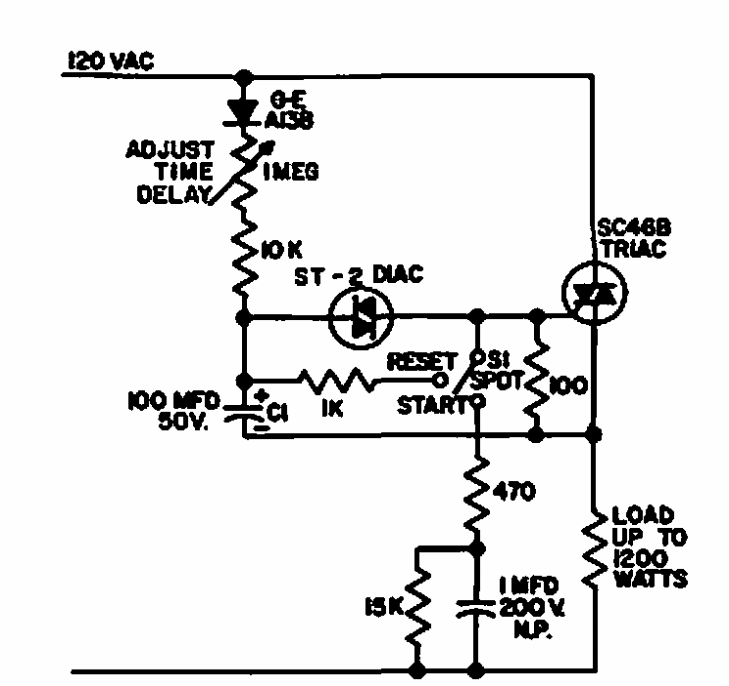

We found this circuit in a 1965 General Electric manual. The controlled load depends on the Triac and the 100 uF capacitor delay time.
