Detector and counter (CB21510E)

Details
Written by: Newton C. Braga

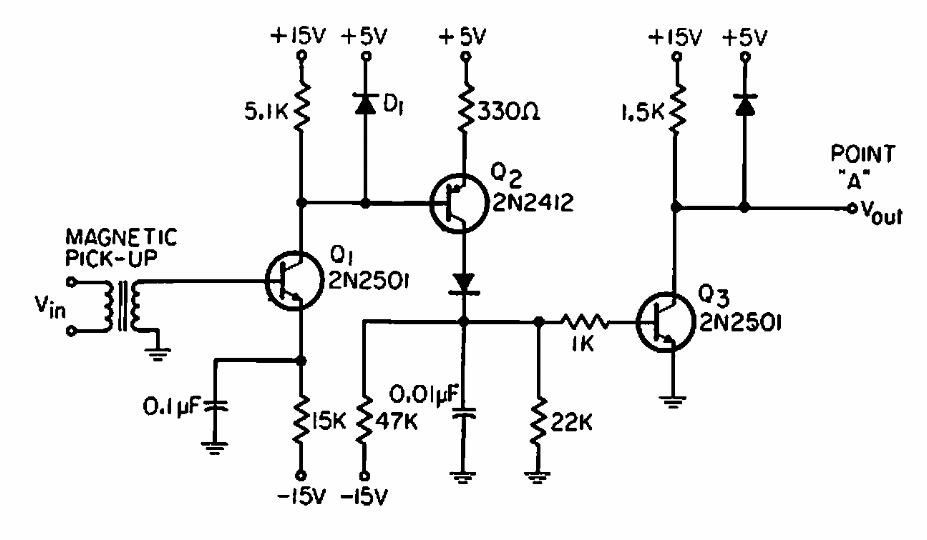

This circuit was taken from old American documentation. The circuit provides pulses obtained from a magnetic sensor for application in meters.
