Zero crossing switch (CB21367E)

Details
Written by: Newton C. Braga

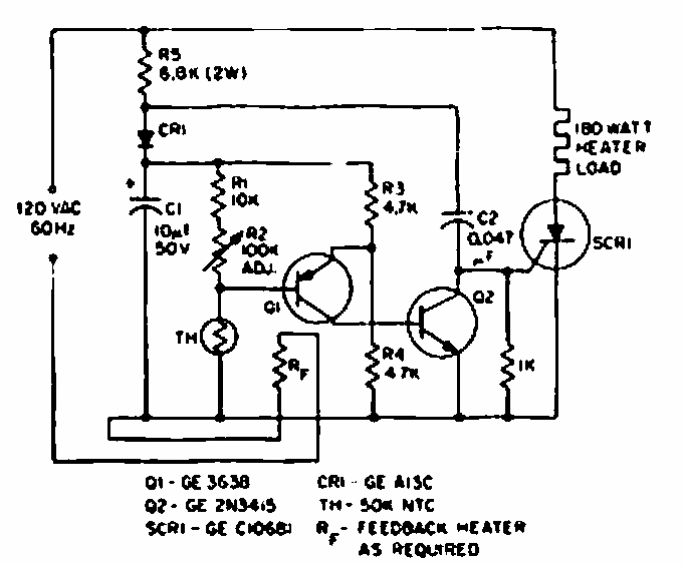

The purpose of this circuit found in a 1967 GE SCR manual is to control a heating element. The SCR must have current according to the controlled load.




| Clique na imagem para ampliar |
