Adjustable hysteresis circuit (CB21464E)

Details
Written by: Newton C. Braga

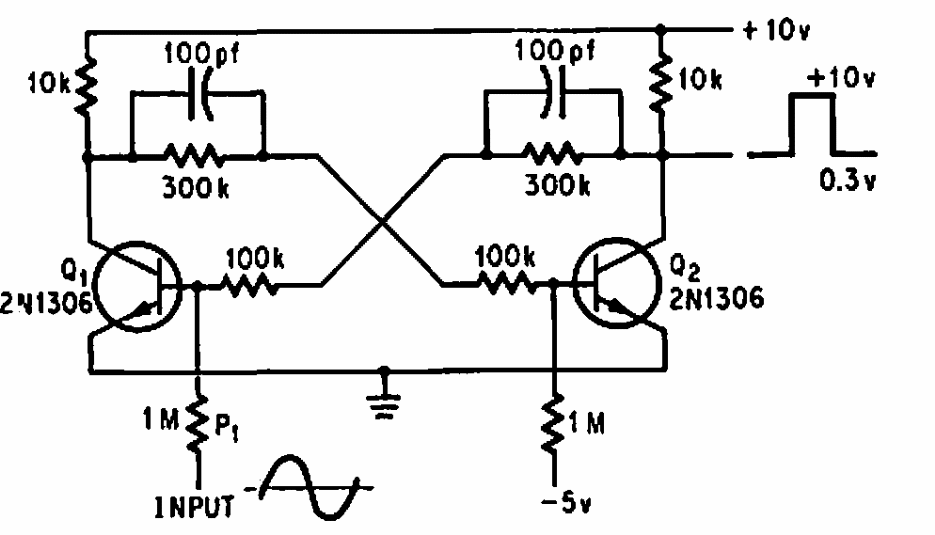

Found in an American publication, this circuit makes use of transistors from the time. Components can be changed according to desired characteristics.
