SCR trigger (CB21460E)

Details
Written by: Newton C. Braga

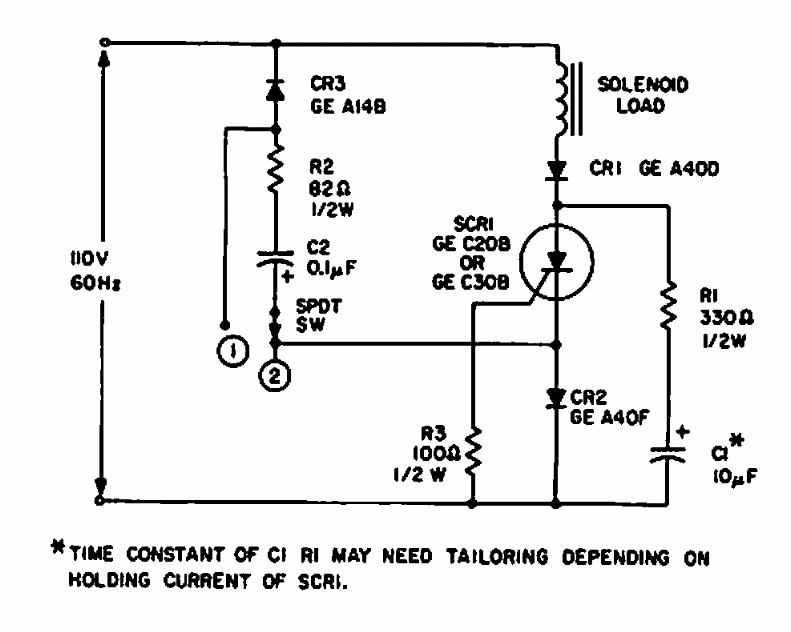

This circuit is intended to trigger SCRs on the positive half cycle for solenoid control. The circuit is from the 1967 General Electric SCR Manual.
