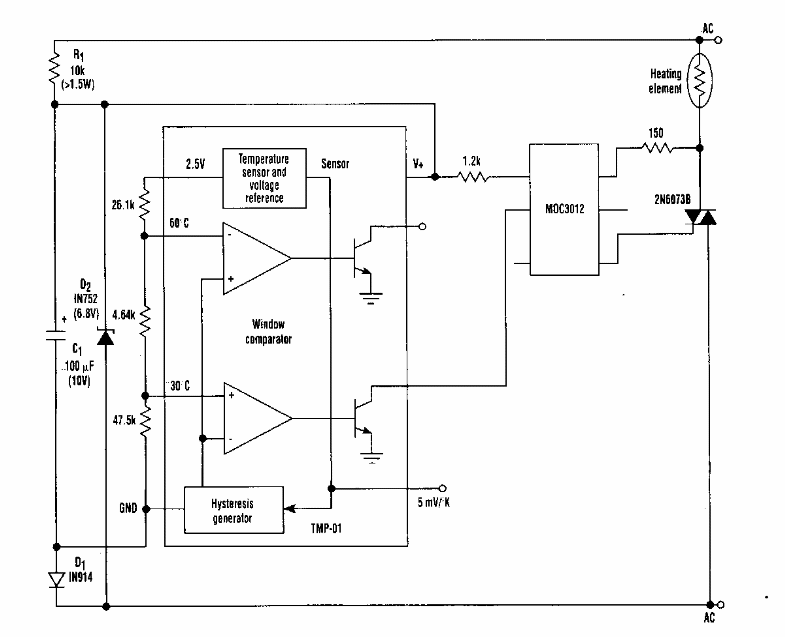

Temperature control (CB21275E)

Details
Written by: Newton C. Braga



This circuit was found in an Electronic Design from the 90's. It makes use of components from the time. Triac is according to the controlled load.
