CW Monitor (CB21439E)

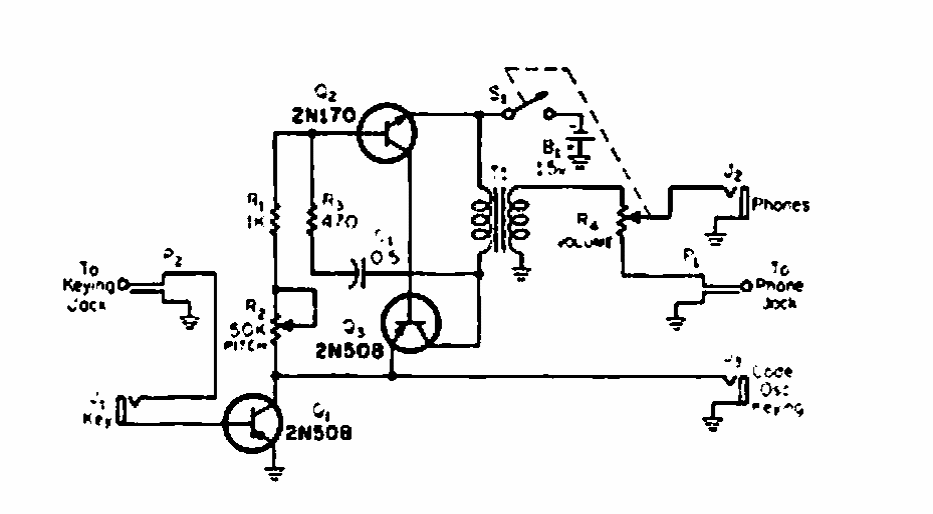

This circuit for monitoring telegraphy transmissions was found in a 1975 CQ magazine. Transistors may be modern equivalents.
