Ramp generator with integrator (CB21845E)

Details
Written by: Newton C. Braga

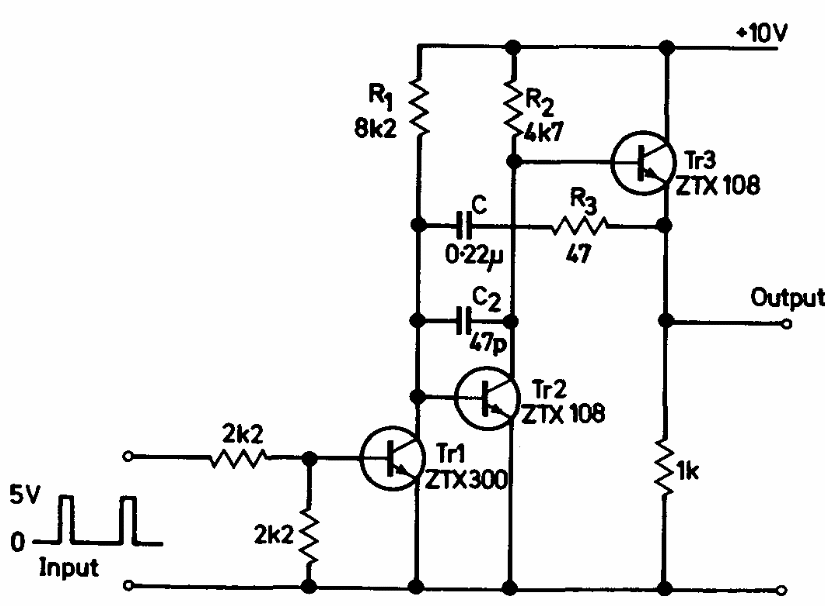

This circuit uses a feedback integrator. We found it in Ferranti's transistor manual from 1974. Transistors are general-purpose types at the time.




| Clique na imagem para ampliar |
