Variable delay pulse (CB21399E)

Details
Written by: Newton C. Braga

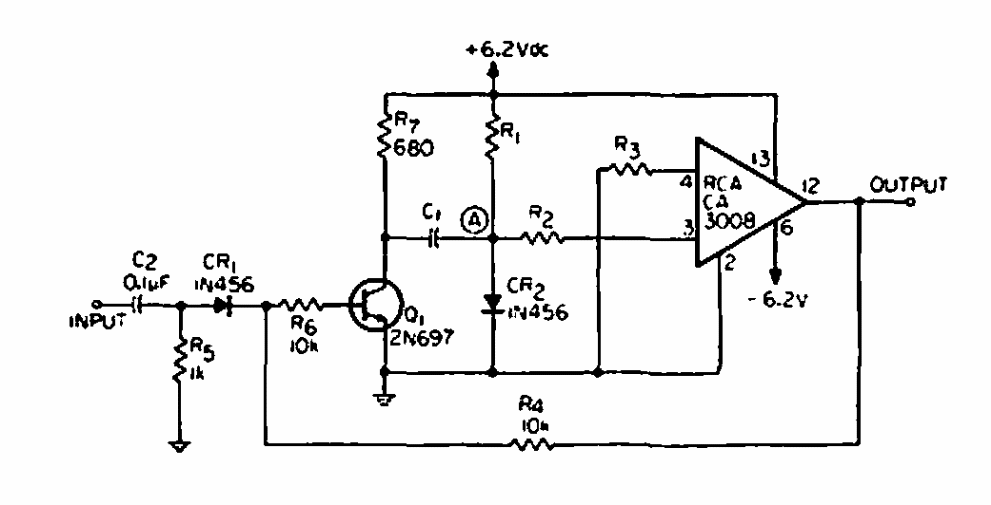

Found in a 1967 American documentation, this circuit produces a pulse with a delay that depends on the components used. The operational is from the time.




| Clique na imagem para ampliar |
