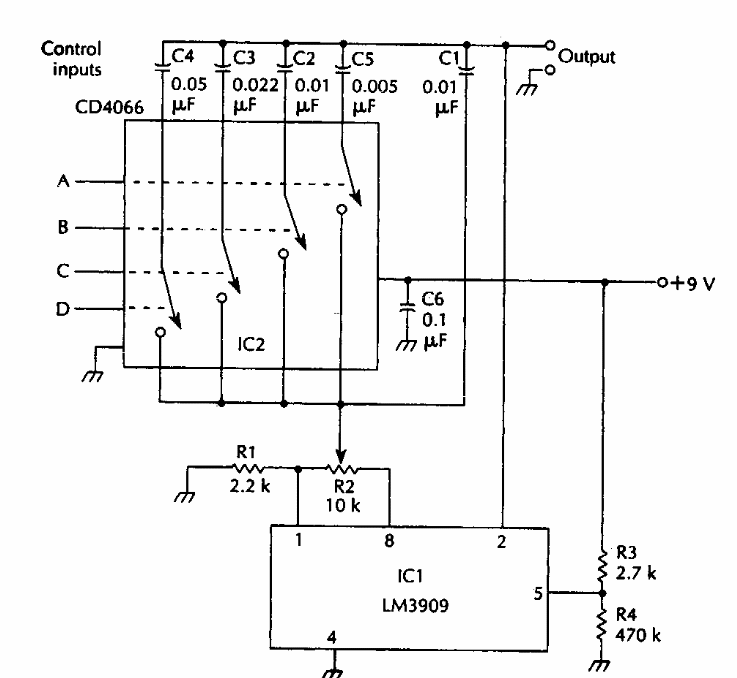

Found in American documentation from the 90s, this circuit has the signal frequency determined by capacitors from C4, C3, C2 and C5 selected by digital switches.
| Clique na imagem para ampliar |
Digitally controlled rectangular oscillator (CB21129E)
- Details
- Written by: Newton C. Braga
