Simple audio mixer (CB21081E)

Details
Written by: Newton C. Braga

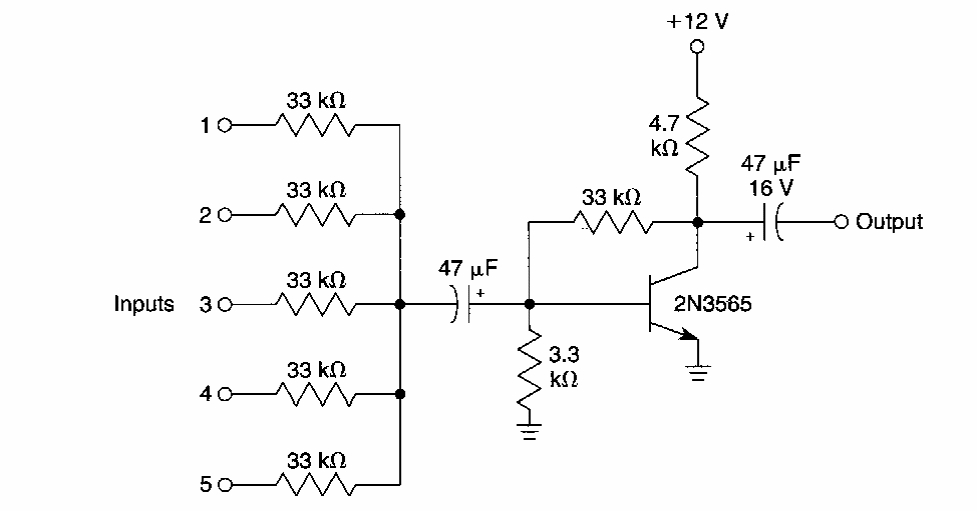

The transistor on this mixer can be any general-purpose transistor. The number of entries can be changed. We found it in an old documentation. Input and output cables must be shielded.
