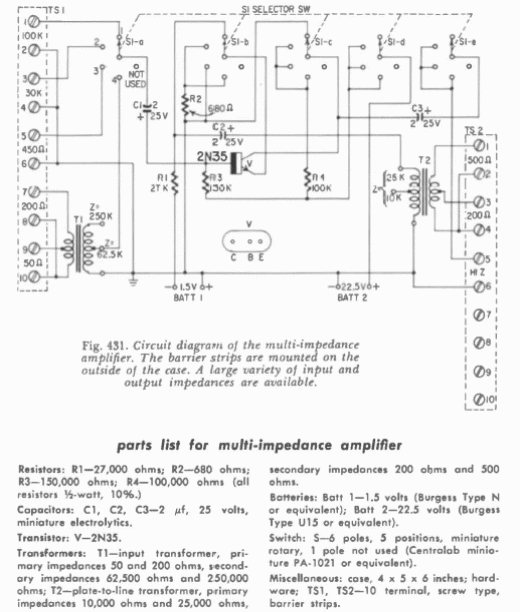

This interesting amplifier circuit with selectable impedance is from a 1960s book of Gernsback transistors. The transistor is from the period. The circuit can be adapted to operate with modern transistors.
Multi impedance amplifier (CB21678E)
- Details
- Written by: Newton C. Braga
