Cassette Amplifier (CB21971E)

Details
Written by: Newton C. Braga

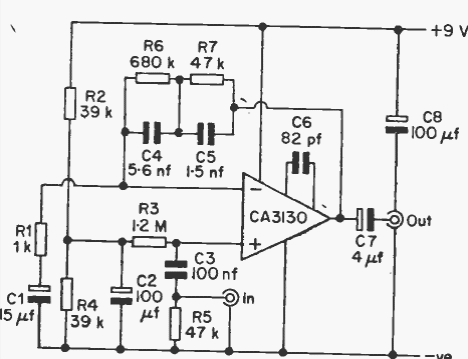

Using the CA3130, this NAB EQ preamp has excellent gain. The power supply does not have to be symmetrical.
