Signal injector (CB21397E)

Details
Written by: Newton C. Braga

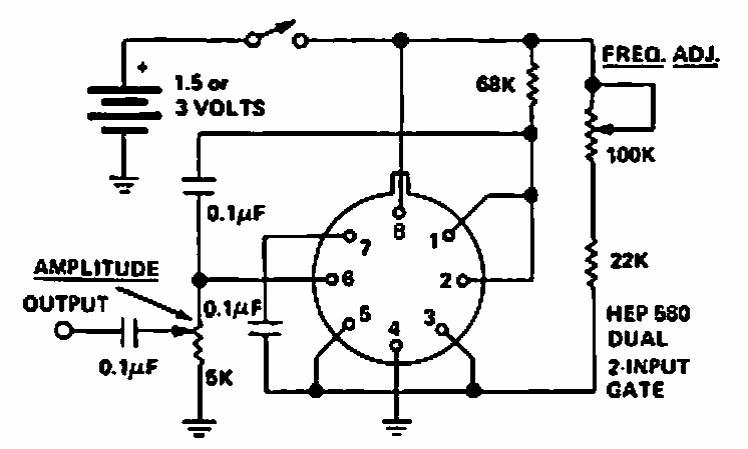

This circuit is from a Motorola documentation from 1968. The integrated one is an operational of the time still in metallic casing. Modern equivalents can be used.




| Clique na imagem para ampliar |
