Ramp Generator (CB21842E)

Details
Written by: Newton C. Braga

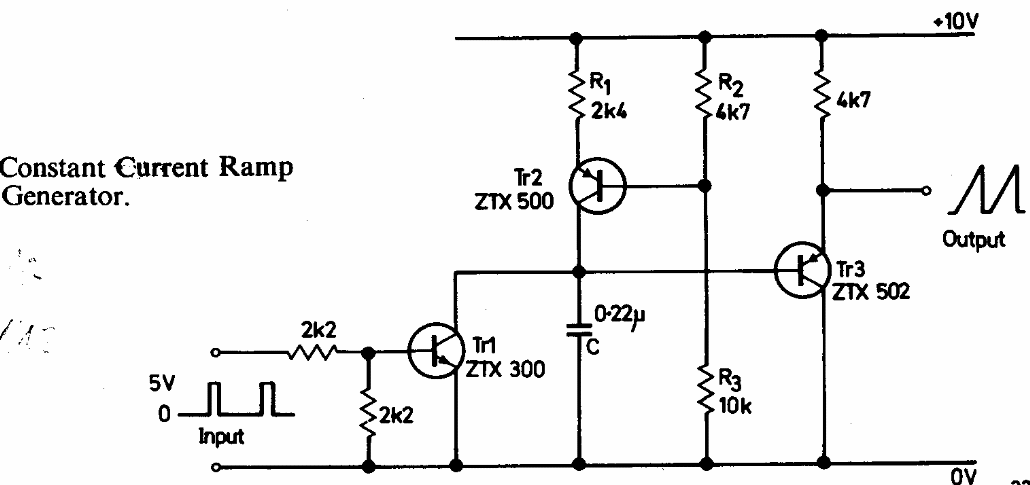

We found this circuit in Ferranti's 1974 transistor manual. Transistors are general-purpose types at the time.
