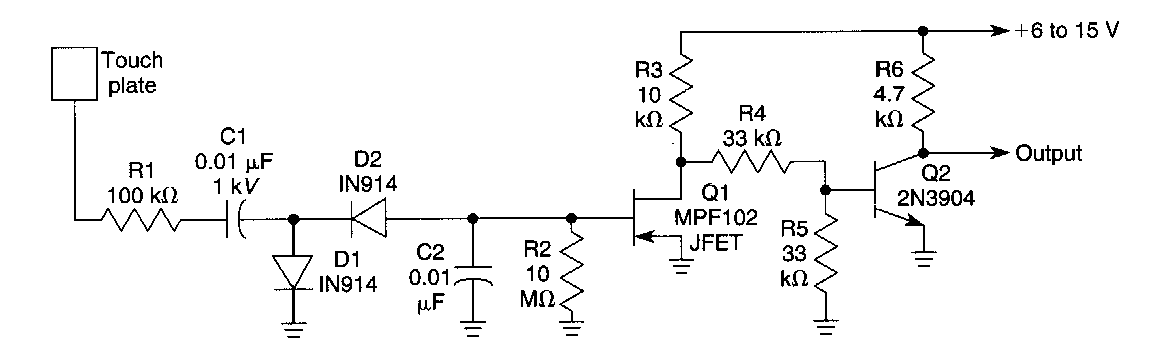

Touch switch (CB21297E)

Details
Written by: Newton C. Braga



This touch switch uses components that have easy-to-obtain current equivalents. The power supply must be isolated and the cable to the sensor must be short.
