Voltage to Current Converter for LEDs (CB21623E)

Details
Written by: Newton C. Braga

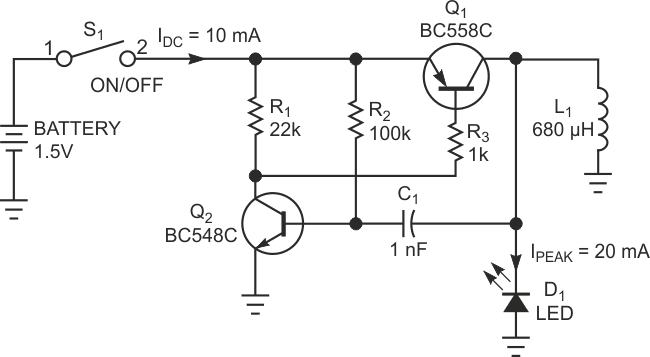

This common transistor-based circuit provides power for 20 mA common white LEDs from a single 1.5 V battery.
