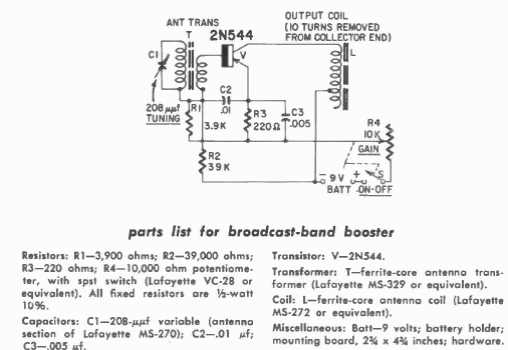

Medium wave range booster (CB21677E)

Details
Written by: Newton C. Braga



This circuit is from a 1960 book by Hugo Gernsback. The transistors are germanium from the time.
