Power delay (CB21418E)

Details
Written by: Newton C. Braga

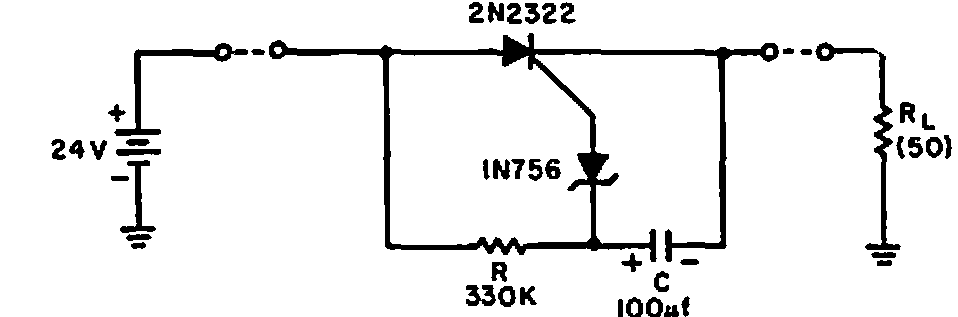

This circuit was found in a 1964 Electronic Design. The circuit delays the firing of a load for a time given by RC. The SCR must be in accordance with the controlled load.
