Ambient light indicator (CB21567E)

Details
Written by: Newton C. Braga

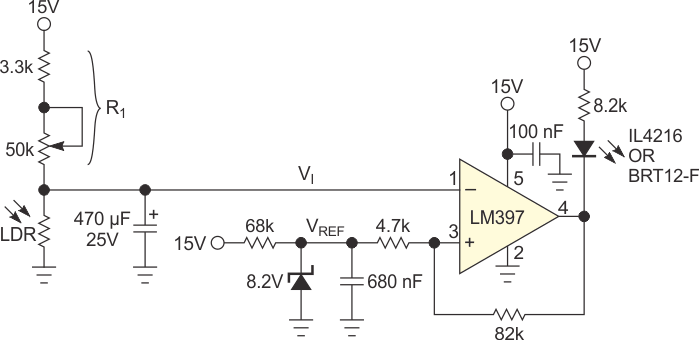

This circuit uses an LDR as a sensor to trigger an LED indicator at a preset lighting level. The power supply does not have to be symmetrical.




| Clique na imagem para ampliar |
