1 kHz (CB21824E)

Details
Written by: Newton C. Braga

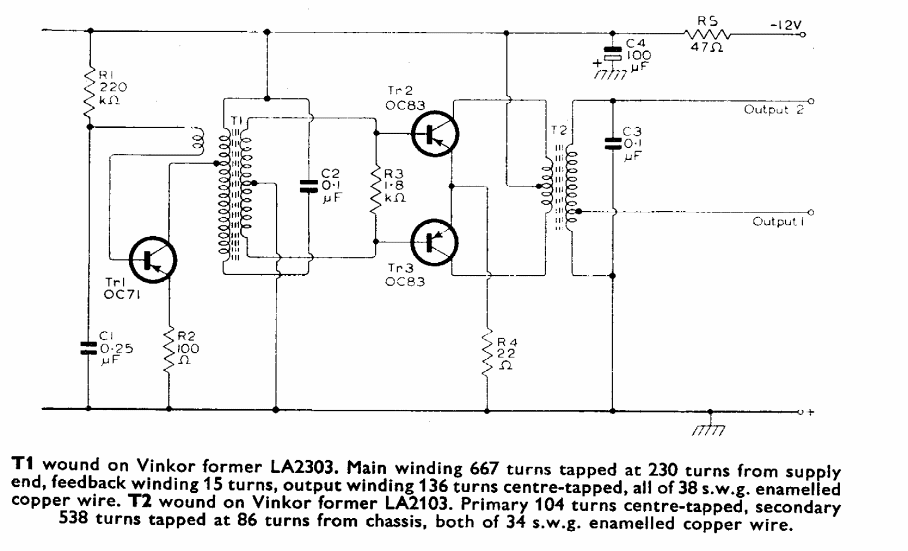

This circuit for equipment adjustment and diagnostics was found in a Mullard transistors manual from 1960. Information about the transformers is given with the diagram.




| Clique na imagem para ampliar |
