Bridge linearizer function (CB21033E)

Details
Written by: Newton C. Braga

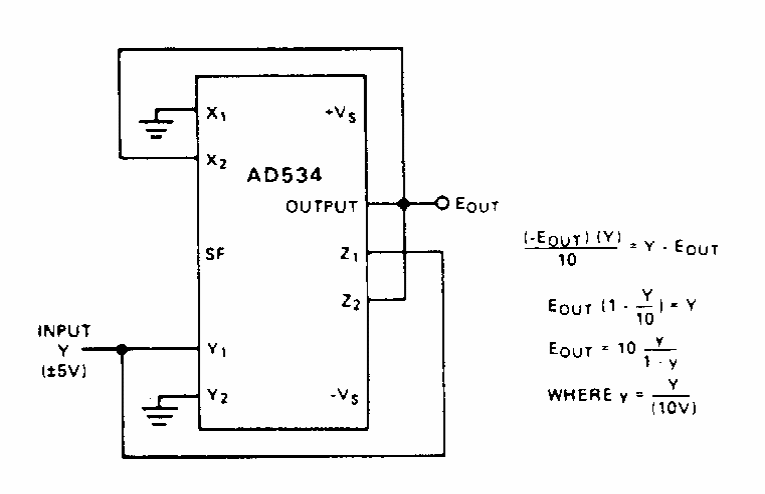

Found in Analog Devices documentation, this circuit is used in measurement bridges to linearize the signals when approaching equilibrium. Formulas are given next to the diagram.
