Emitter triggered multivibrator (CB21456E)

Details
Written by: Newton C. Braga

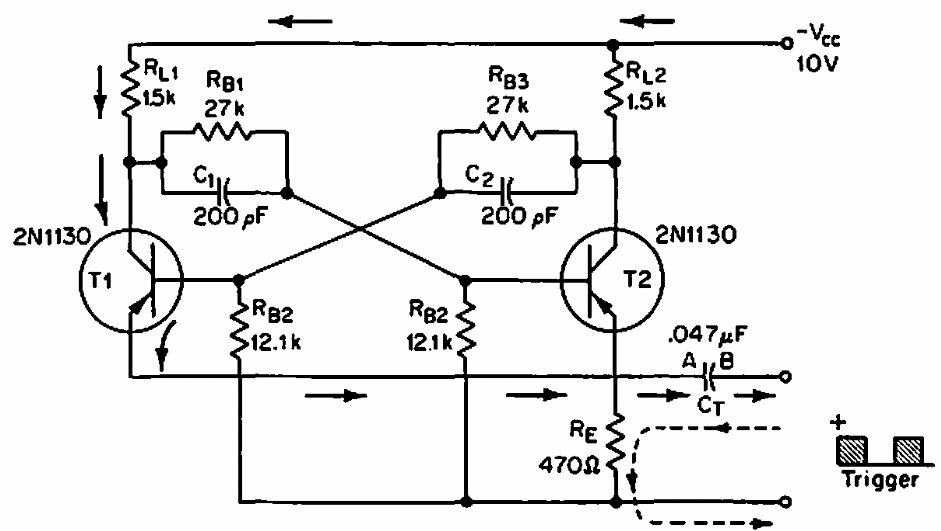

Found in an American documentation from 1968, this circuit uses transistors from the time. The circuit can be adapted to use equivalent modern components.
