Tachometer Adapter (CB21012E)

Details
Written by: Newton C. Braga

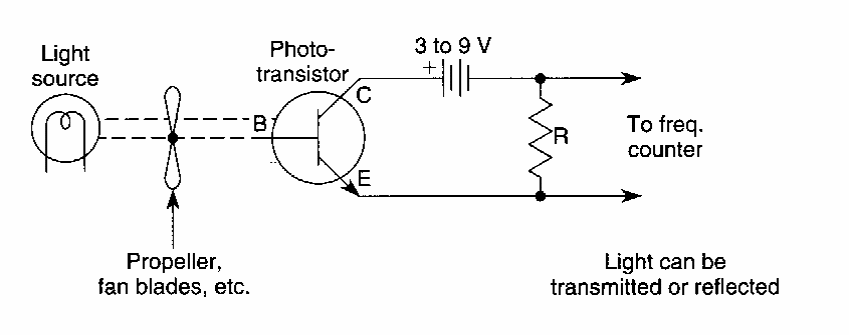

With this circuit it is possible to use a frequency meter as a tachometer. The circuit was found in American documentation from the 90s. The phototransistor can be of any type.
