Sawtooth generator (CB21338E)

Details
Written by: Newton C. Braga

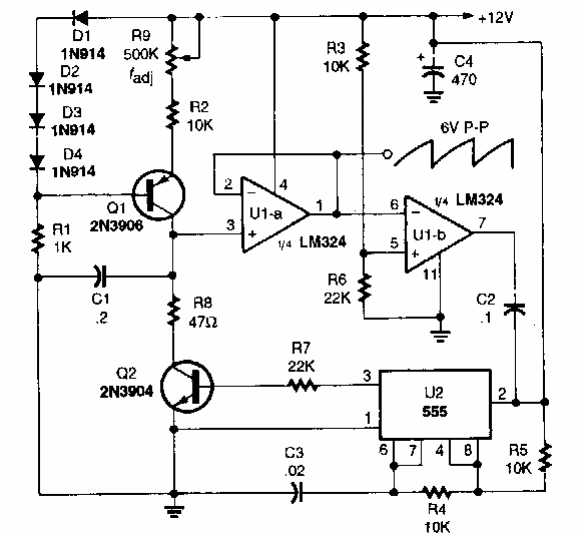

This op amp circuit is based on a 555 IC and two common op amps. Transistors are general purpose.
