TTL Counter (CB21360E)

Details
Written by: Newton C. Braga

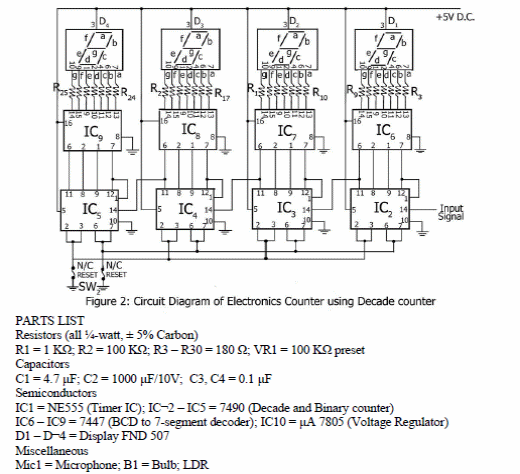

This counter from 0 to 9999 was found in English documentation. The power source must be 5V with at least 1A.
