Relay locking circuit (CB21583E)

Details
Written by: Newton C. Braga

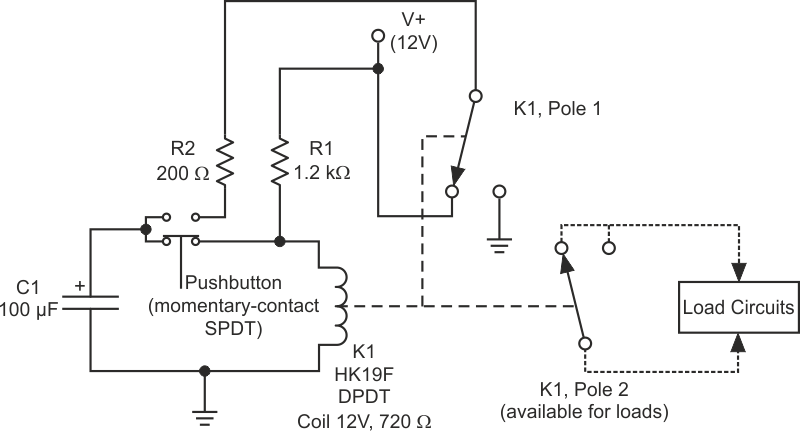

This circuit takes advantage of the hysteresis of a relay to provide a latching effect. The circuit acts as a trigger and the components must be according to the used relay.




| Clique na imagem para ampliar |
