12V power supply (CB21172E)

Details
Written by: Newton C. Braga

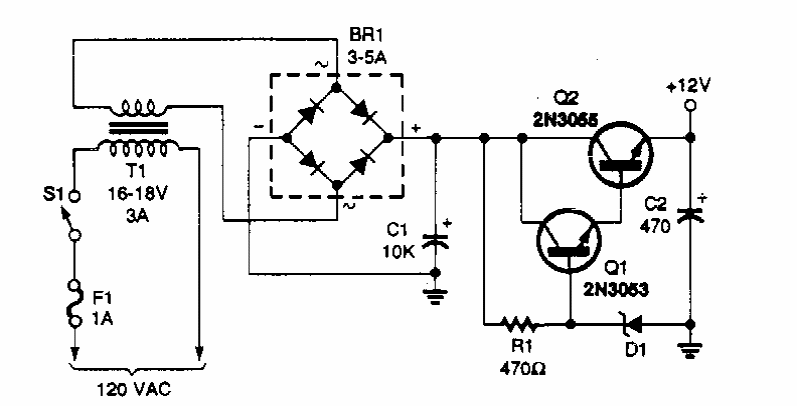

This simple 12 V power supply with current up to 2 A was found in a Popular Electronics from the 90s. The zener diode is 14 V and transistor Q2 can be a TIP42.




| Clique na imagem para ampliar |
