Remote listening amplifier (CB21957E)

Details
Written by: Newton C. Braga

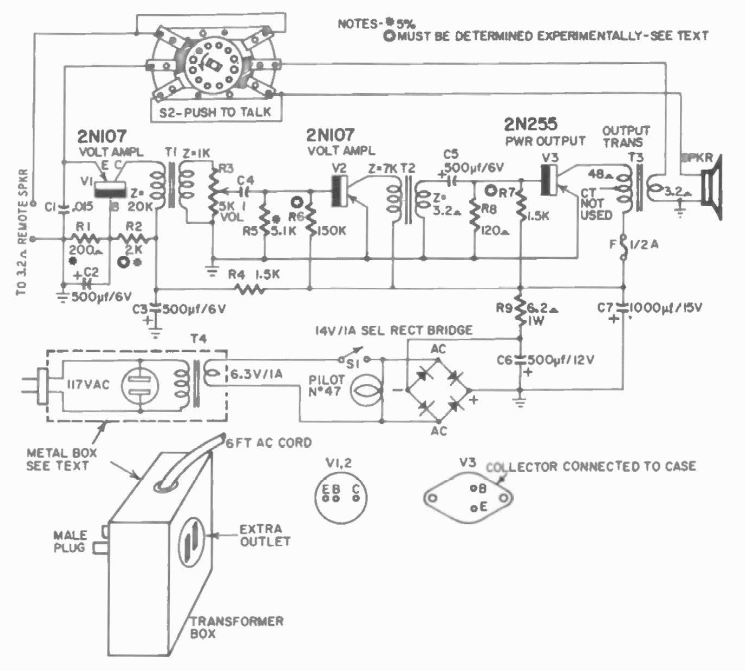

Today we can call this circuit a baby monitor. It is a microphone amplifier found in a publication by Hugo Gernsback from 1960.
