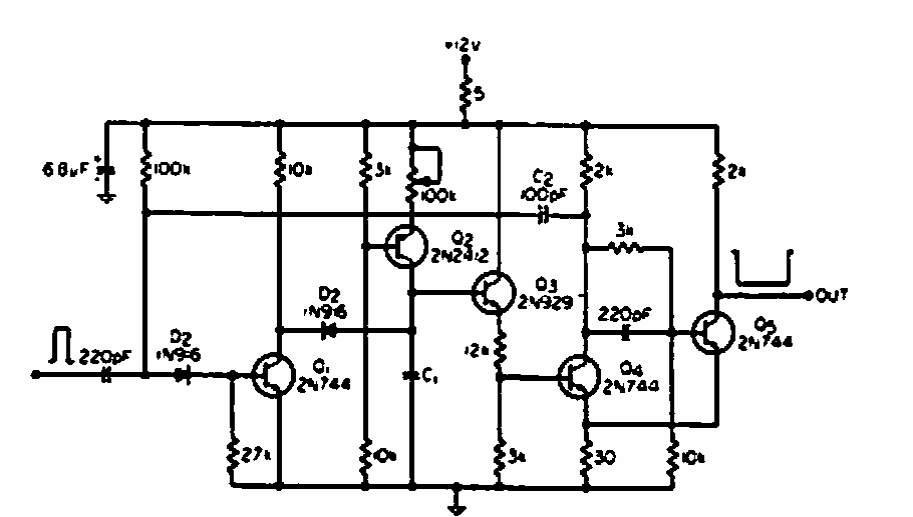

Multi-pulse trigger (CB21477E)

Details
Written by: Newton C. Braga



This circuit was found in a 1967 EEE. The transistors are from the time and can be tested equivalent.
