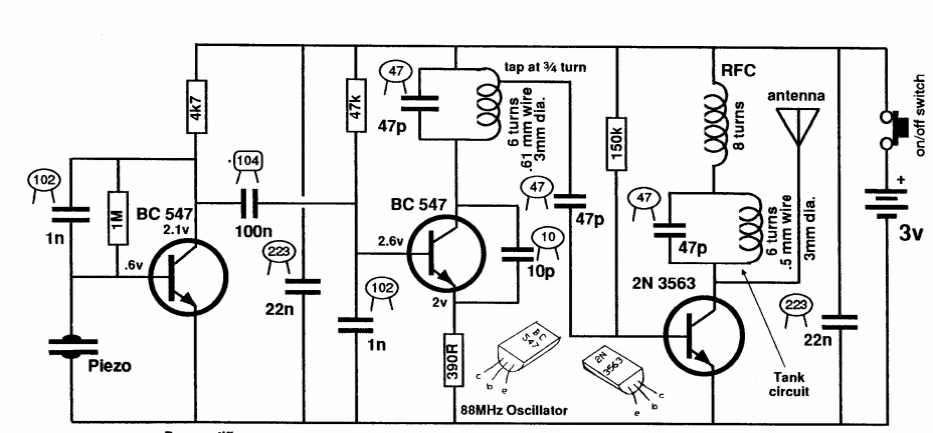

Wall transmitter (CB21876E)

This circuit sends its signals through a wall acting as an FM spy. The circuit is from an Australian publication from 1991.

| Clique na imagem para ampliar |
