LASER Driver (CB21008E)

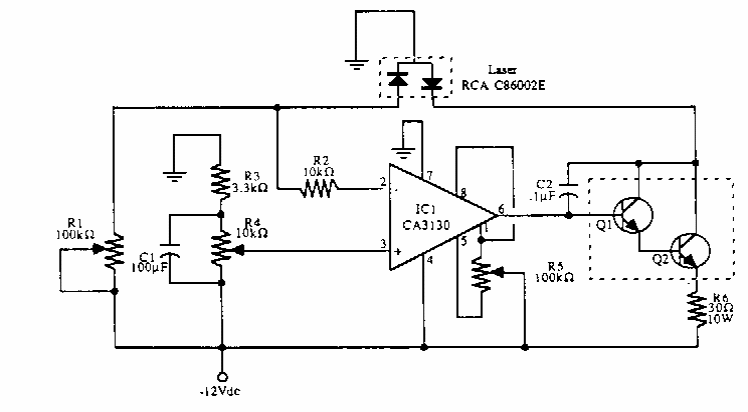

We found this circuit in an American publication from the 1990s. The circuit has a Darlington stage to drive a high-power LASER diode.

| Clique na imagem para ampliar |
