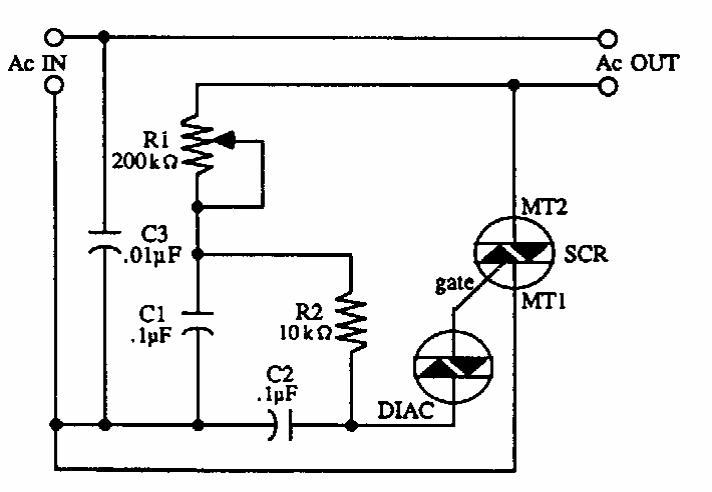

This conventional double time constant circuit was found in an American documentation from the 90's. The triac must be according to the motor controlled.
| Clique na imagem para ampliar |
Triac motor control (CB21095E)
- Details
- Written by: Newton C. Braga
