Sensor for heart monitor (CB21075E)

Details
Written by: Newton C. Braga

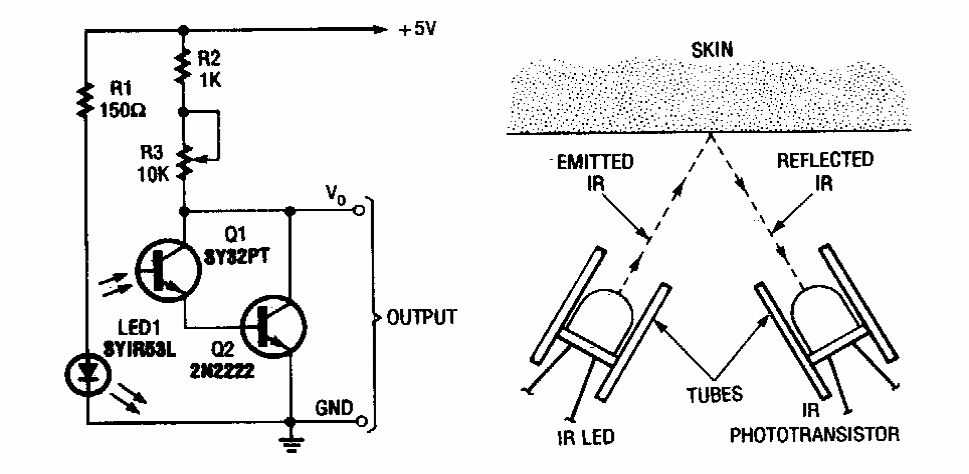

We found this heart rate sensor circuit in a Popular Electronics from the 90s. The placement of the emitter and the receiver is important.
