DC amplifier with transistors (CB21819E)

Details
Written by: Newton C. Braga

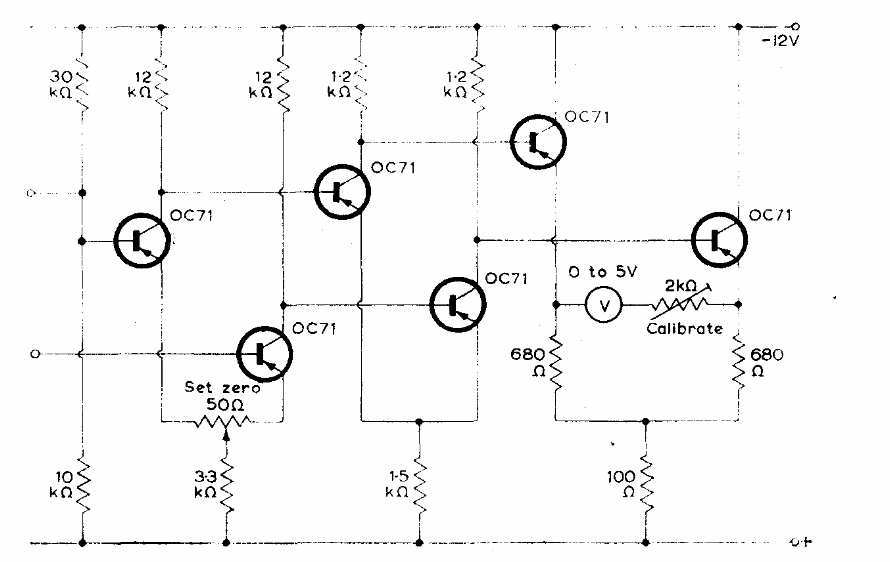

This circuit was found in Mullard's 1960s transistor manual. The circuit uses germanium transistors from the time.
