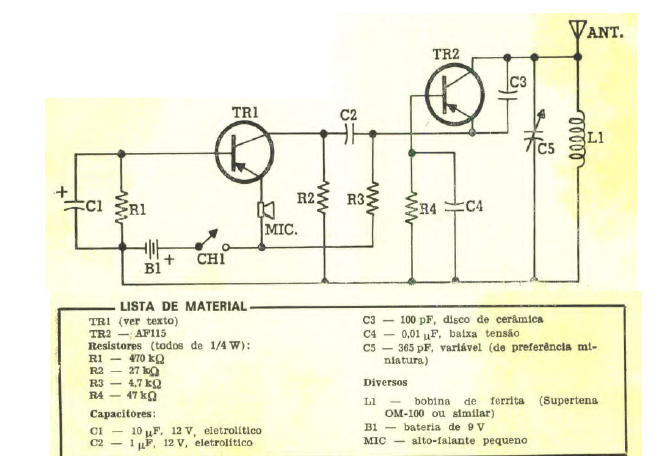

Medium Wave Transmitter (CB21736E)

Found in Popular Electronics of January/February 1969, this transmitter has a few meters range and can be used as a wireless microphone.

| Clique na imagem para ampliar |
