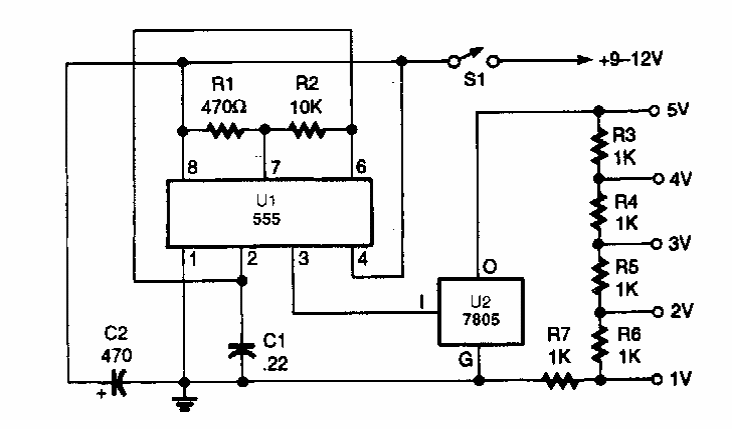

Voltage Calibrator (CB21331E)

This circuit is from an old Popular Electronics. The circuit is based on a 555 and a 5V voltage regulator.
