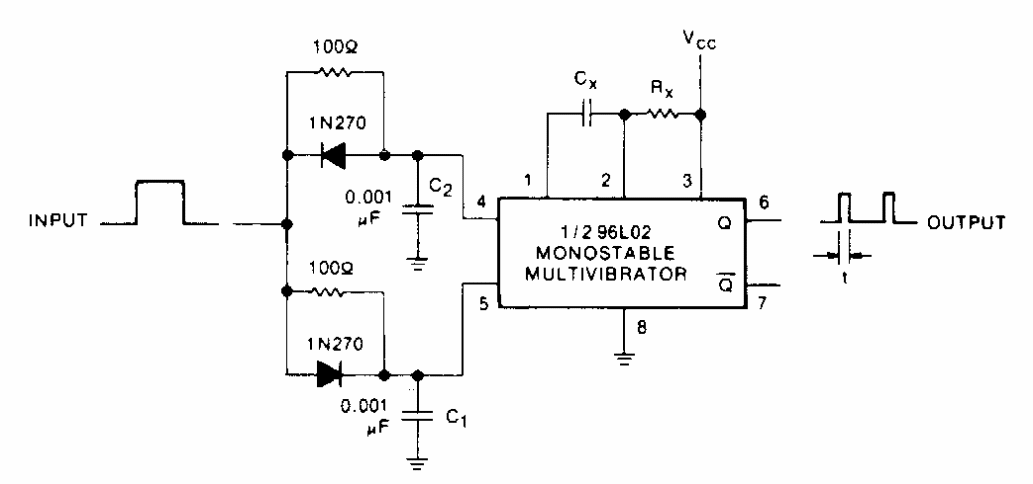

Logic Level Change Indicator (CB21026E)

This circuit was found in NASA documentation from the 1990s. The monostable multivibrator admits an equivalent.

| Clique na imagem para ampliar |
