Null Indicator (CB23557E)

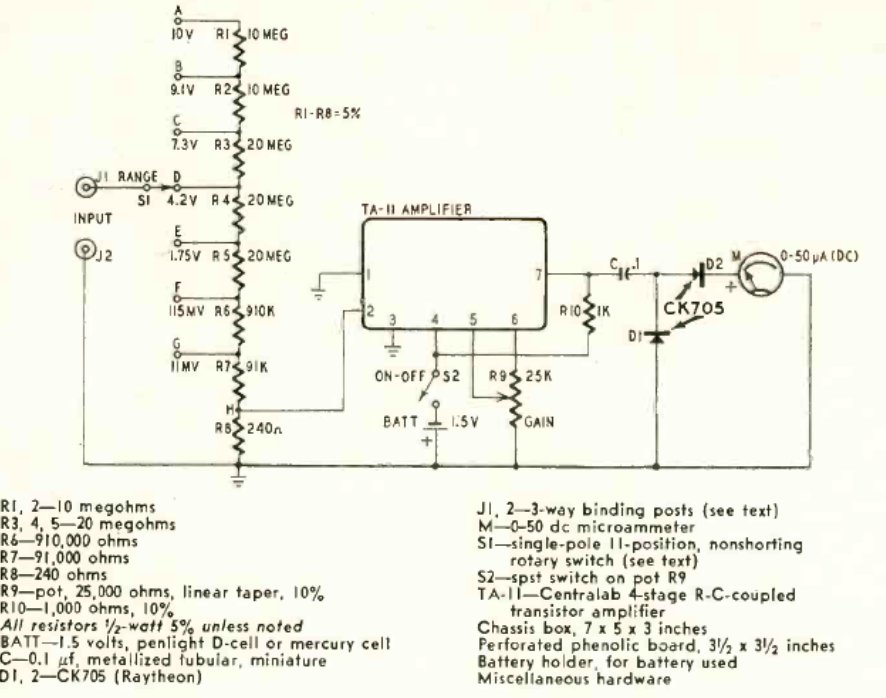

This circuit uses a transistor module, a version that preceded the integrated circuit. The circuit is from a Radio Electronics from May 1958.
